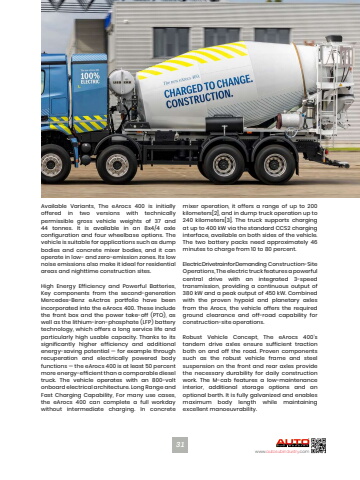

31 www.autosubindustry.comAvailable Variants, The eArocs 400 is initially offered in two versions with technically permissible gross vehicle weights of 37 and 44 tonnes. It is available in an 8x4/4 axle configuration and four wheelbase options. The vehicle is suitable for applications such as dump bodies and concrete mixer bodies, and it can operate in low%u2011 and zero%u2011emission zones. Its low noise emissions also make it ideal for residential areas and nighttime construction sites.High Energy Efficiency and Powerful Batteries, Key components from the second-generation Mercedes%u2011Benz eActros portfolio have been incorporated into the eArocs 400. These include the front box and the power take-off (PTO), as well as the lithium-iron-phosphate (LFP) battery technology, which offers a long service life and particularly high usable capacity. Thanks to its significantly higher efficiency and additional energy-saving potential %u2014 for example through recuperation and electrically powered body functions %u2014 the eArocs 400 is at least 50 percent more energy-efficient than a comparable diesel truck. The vehicle operates with an 800-volt onboard electrical architecture. Long Range and Fast Charging Capability, For many use cases, the eArocs 400 can complete a full workday without intermediate charging. In concrete mixer operation, it offers a range of up to 200 kilometers[2], and in dump truck operation up to 240 kilometers[3]. The truck supports charging at up to 400 kW via the standard CCS2 charging interface, available on both sides of the vehicle. The two battery packs need approximately 46 minutes to charge from 10 to 80 percent.Electric Drivetrain for Demanding Construction-Site Operations, The electric truck features a powerful central drive with an integrated 3-speed transmission, providing a continuous output of 380 kW and a peak output of 450 kW. Combined with the proven hypoid and planetary axles from the Arocs, the vehicle offers the required ground clearance and off-road capability for construction-site operations.Robust Vehicle Concept, The eArocs 400%u2019s tandem drive axles ensure sufficient traction both on and off the road. Proven components such as the robust vehicle frame and steel suspension on the front and rear axles provide the necessary durability for daily construction work. The M-cab features a low-maintenance interior, additional storage options and an optional berth. It is fully galvanized and enables maximum body length while maintaining excellent manoeuvrability.
